PRODUCT
RELAY SERIES
AUTOMATIVE Relay (YRA)
- Max. switching current 20A
- Super miniature
- Different contact form available
- Open or sealed cover available
- 25A switching capability
- Plastic sealed and dust protected types available
- Suitable for automotive system and automobile auxiliary etc.
- RoHS,ELV Compliant
- 20A switching capability
- Small size auto relay
- RoHS,ELV compliant
- 40A Switching Capability
- PCB pin and quick connect mounting available
- Optional mounting bracket
- RoHS,ELV compliant
- 80A continuous rating 85℃
- Plug-in or PC board terminals
- Optional mounting bracket
- Super miniature automotive relay
- 25A motor locked load
- Single or twin relay
- Change-over contact version
- 30A switching capability
- Plastic sealed and dust protected types available
- Suitable for automotive system and automobile auxiliary etc.
- RoHS,ELV Compliant
- 30A switching capability
- 2.8mm QC terminals
- Suitable for automotive system and automobile auxiliary etc.
- RoHS,ELV Compliant

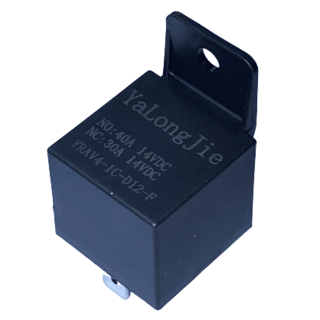

- 40A Switching Capability
- PCB pin and quick connect mounting available
- Optional mounting bracket
- RoHS,ELV compliant
- 30A switching capability
- 2.8mm QC terminals
- Suitable for automotive system and automobile auxiliary etc.
- RoHS,ELV Compliant
POWER Relay (YRP)
- 10A switching capability
- Subminiature, standard PCB layout
- 1 Form A and 1 Form C configuration
- Class B/F available
- RoHS, REACH Compliant
- 5A switching capability
- Slim relay
- width 5mm, height 12.5mm
- Sealed type available
- High sensitive: Minimum 120mV
- Low height: 15.7mm;
- 5KV dielectric strength (between coil and contacts)
- Class F available
- Conform to RoHS, ELV directive
- 10A switching capability
- 20mm height
- Transparent sealed available
- Class B/F available
- Conform to RoHS, ELV directive
- 16A switching capability
- 5KV dielectric strength between coil and contacts
- Transparent sealed available
- 20mm height
- Conform to RoHS, ELV directive
- Creepage distance:8.0mm Min
- 20mm height
- Transparent sealed available
- Class B/F available
- Conform to RoHS, ELV directive
- 5A switching capability
- High sensitive coil power only 200mW
- Extremely small footprint utilizing PCB area
- Conform to ROHS,ELV directive
- 5A switching capability
- 5kV dielectric strength (between coil and contacts)
- 1 Form A configuration
- RoHS, REACH Compliant
- UL insulation system: Class F
- 10A switching capability
- Contact arrangement: 1A, 1C
- UL insulation system: Class F
- Subminature standard PCB layout
- RoHS compliant
SIGNAL Relay (YRS)
- Subminiature
- .1 Form C configuration
- High Sensitive: 150mW
- Designed for compact,high density mounting
- RoHS, ELV Compliant
- Small size and low cost
- Standard PCB layout
- Sealed type available
- 1 Form C configuration
- 2 Form C configuration
- High sensitivity
- Bifurcated contacts
- Sealed version
- Conform to RoHS,ELV directive
Magnetic Latching Relay (YRL)
- 120A Switching capability
- 4KV dielectrics strength coil to contact
- According to IEC62055-31:UC
- RoHS Compliant
- 20A switching capability
- Both of single coil and double coils are available
- UL insulation system：Class F
- The contact can withstand 750A 10ms short-circuit impulse current
- The contact on and off can be controlled by the hand control switch
- RoHS Compliant
CONTACTOR SERIES
DC Contactor (YRE)
- With ceramic seal structure, the contact chamber filled with hydrogen mixed educing gas, combined with magnetic blow-ou Voltage contactor can cut off load voltage of 1000VDC.
- The model with auxiliary contact can monitor the position of the main contact in real time, and is suitable for the charging product field where the main contact is required to be monitored in real time.
- The main / auxiliary contacts in a sealed, hydrogen mixed and reduced gas environment are not easily contaminated or oxidized even in the harshest environment.
- With ceramic seal structure, the contact chamber filled with hydrogen mixed educing gas, combined with magnetic blow-out. Voltagecontactor can cut off load voltage of 1000VDC.
- The model with auxiliary contact can monitor the position of the main contact in real time, and is suitable for the charging productfield where the main contact is required to be monitored in real time.
- The main / auxiliary contacts in a sealed, hydrogen mixed reduced gas environment are not easily contaminated or oxidized even inthe harshest environments.
- With ceramic seal structure, the contact chamber filled with hydrogen mixed educing gas, combined with magnetic blow-out. Voltagecontactor can cut off load voltage of 1000VDC.
- The model with auxiliary contact can monitor the position of the main contact in real time, and is suitable for the charging productfield where the main contact is required to be monitored in real time.
- The main / auxiliary contacts in a sealed, hydrogen mixed reduced gas environment are not easily contaminated or oxidized even inthe harshest environments.
